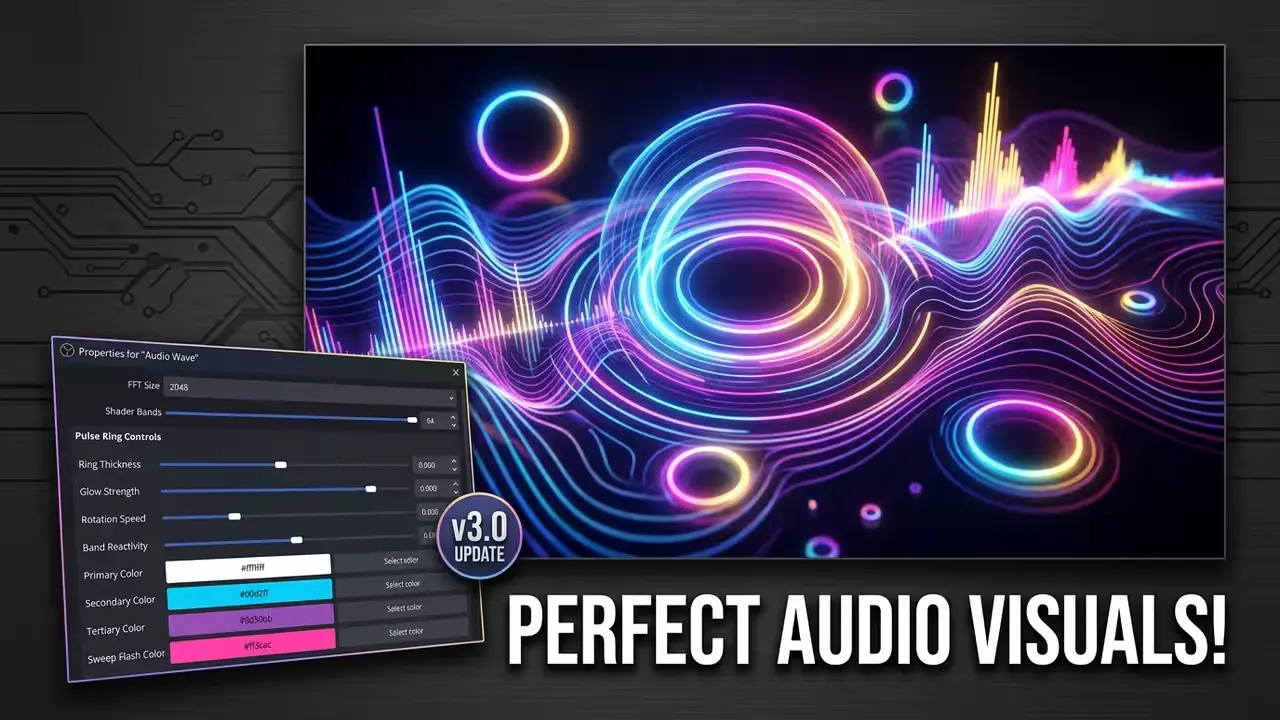

Audio Waves Visualizer cover image

Audio Waves Visualizer for OBS Studio: The Shader-Based Audio-Reactive Plugin That Replaces Browser Visualizers

Audio Waves Visualizer is a native OBS Studio plugin built for creators who want professional, real-time audio-reactive visuals without the performance penalty of browser sources, third-party scripts, or external visualizer tools. Instead of streaming a webpage into OBS and hoping the CPU keeps up, this plugin runs entirely on the GPU using HLSL shaders (.effect files) and exposes raw audio data RMS, peak amplitude, and a 64-band FFT spectrum directly to your shader pipeline as live uniforms. The result is smoother animations, lower system load, and complete control over how every visual element reacts to sound.

Use This Plugin as a Practical Stream Upgrade

This asset is useful when you want a focused improvement without rebuilding your entire channel package. Download it, test the implementation against your existing scenes, and adjust the final shader parameters around your brand colors, animation speed, and visual identity Download the last version from here

Quick Verdict: Why Shader-Driven Audio Visualizers Beat Browser Sources

Browser-source music visualizers were fine for the early days of streaming. In 2026, they're a bottleneck every active browser overlay spins up a full Chromium instance, eats CPU cycles, and introduces latency between the audio you hear and the visuals your viewers see. Audio Waves Visualizer takes the opposite approach: it lives inside OBS as a native source, renders entirely on the GPU, and reacts to audio with frame-perfect timing. If you produce music streams, podcasts, DJ sets, or any content where audio is the centerpiece, this is the plugin to install first. For the long-form companion tutorial covering setup, shader writing, and live tuning, see the full Audio Wave plugin for OBS Studio walkthrough.

What Is Audio Waves Visualizer?

Audio Waves Visualizer is a native OBS Studio plugin designed for building real-time, audio-reactive visuals using GPU shaders (.effect / HLSL). Unlike traditional visualizers that depend on browser sources, scripts, or external rendering tools, this plugin operates entirely inside OBS and gives you direct, low-level access to audio data through fully customizable shader pipelines.

Instead of shipping with a single fixed visual style, the plugin acts as a rendering engine. It captures audio from any OBS source, processes it into usable metrics (RMS, peak, FFT spectrum), and injects that data into shaders as uniforms. This architecture is what enables both raw performance and creative flexibility, making it suitable for everything from minimal microphone activity indicators to complex GPU-driven procedural effects that look like they came out of a music video editor.

How It Works: The Audio-to-GPU Rendering Pipeline

The plugin introduces a transparent OBS source that sits inside your scene like any other element. Internally, it follows a structured pipeline that keeps every stage decoupled and predictable:

OBS Audio Source → Audio Analysis → Shader Uniforms → GPU Rendering → Transparent Visual Layer

Audio data overall level, peak intensity, frequency band separation, and full FFT spectrum is continuously analyzed and passed into the shader. The shader then determines how to render the visual output in real time. This separation between audio processing and visual rendering is what enables both performance and flexibility: the audio analysis is identical regardless of which shader you load, and any shader can use as much or as little of the available data as it needs.

Why Browser-Based Visualizers Fail at Scale

Before getting deeper into features, it's worth understanding the technical reason most creators eventually replace their browser-based visualizers:

  • CPU overhead every browser source launches a Chromium process with full DOM, JavaScript, and rendering pipelines.
  • Latency drift audio analysis happens in JavaScript, which adds variable delay between the sound and the visual reaction.
  • Limited audio access browser visualizers can only listen to system audio capture, not individual OBS sources.
  • Customization friction modifying a browser visualizer means editing JavaScript, CSS, and sometimes WebGL shaders all at once.
  • Filter compatibility browser sources don't respect OBS audio filters like noise suppression or compression.

Audio Waves Visualizer fixes every one of these problems by running natively inside OBS and listening directly to whatever audio source you point it at, with all of your existing OBS filters applied automatically.

Key Capabilities

The current version of Audio Waves Visualizer focuses on extensibility rather than presets, but it ships with enough built-in effects to be productive on day one. Core capabilities include:

  • Native OBS source with a fully transparent rendering layer
  • Support for loading custom .effect shader files directly from the source UI
  • Optional .effect.ini metadata files for clean, user-friendly control panels with named sliders
  • Real-time shader parameter updates without restarting OBS
  • Access to detailed audio data including the full 64-band FFT spectrum
  • Multiple color channel uniforms and configurable numeric options exposed to shaders
  • Per-instance audio source selection (different scenes can react to different audio sources)

Because the plugin doesn't impose a fixed design, it scales smoothly from simple waveform overlays to advanced procedural animations such as vortex fields, reactive rings, neon grids, or particle-style systems.

Available Audio Data (Shader Uniforms)

Inside your shader, you gain direct access to a structured set of audio inputs. These uniforms update every frame and represent the analyzed state of the connected OBS audio source:

  • audio_level overall loudness (RMS), useful for global pulse and scale effects
  • audio_peak peak amplitude, ideal for transient-driven flashes and impacts
  • audio_bass / mid / treble frequency band separation for distinct low/mid/high motion
  • audio_bands[64] the full FFT spectrum for detailed spectrum-based visualization

This range of inputs enables advanced techniques such as frequency-driven animations, smooth interpolation across neighboring bands, custom weighting curves for more natural motion, or completely independent reactions for bass, mids, and highs all impossible with basic visualizers locked to a single amplitude value.

Bundled Effects: Production-Ready From Day One

While the plugin is shader-driven at heart, it includes a curated set of polished, ready-to-use effects so you don't need to write a single line of HLSL to start using it:

  • Pulse Ring concentric rings that breathe with overall audio level
  • Neon Lines glowing horizontal lines reactive to peak amplitude
  • Equalizer Grid classic spectrum analyzer with a modern aesthetic
  • Smooth Waveform Ribbon flowing ribbon that responds to mid frequencies
  • Rounded Wobble Bars soft animated bars with smooth interpolation
  • Spectrum Bars high-detail FFT spectrum visualization
  • Radial Spikes circular reactive spikes around a center point
  • Tunnel Waves depth-based reactive tunnel effect
  • Liquid Blobs organic blob shapes that morph with audio energy
  • Starfield Burst particle-style starfield that bursts on transients
  • Vortex Rings rotating ring system reactive to bass and mids

Each bundled effect doubles as a reference implementation, so they also serve as the perfect starting point for building your own custom shaders.

Custom Shader Workflow

One of the defining features of Audio Waves Visualizer is the ability to load any custom shader directly from the source properties panel:

Properties → HLSL / OBS .effect file → Browse

The shader must define a valid Draw technique. If that's not present, fallback techniques such as Solid or Default may be used, which keeps the plugin compatible with a wide range of shader designs found across the OBS ecosystem.

Pairing a shader with an .effect.ini file lets you expose meaningful, human-readable control labels inside OBS values like "Glow Strength," "Animation Speed," or "Color Saturation" instead of raw uniform names. This makes even complex shaders accessible during live production, where you don't want to fumble with cryptic parameter names mid-stream. If you're new to shader development inside OBS, the related shader plugins on the site including the OBS neon clock countdown shader, the OBS fel fire shader filter, and the Neural Link neural network shader effect provide working .effect file examples you can study and adapt.

Setting Up Audio Waves Visualizer in OBS Studio

Installation and setup follow standard OBS plugin conventions, with one or two details worth getting right the first time:

  1. Download the plugin from the link at the bottom of this article and run the installer.
  2. Restart OBS Studio so the new source type is registered.
  3. In the scene where you want the visualization, click + in the Sources panel and choose Audio Waves Visualizer.
  4. In the source properties, select the OBS audio source the visualizer should listen to (your microphone, a desktop audio source, a media source playing music, etc.).
  5. Pick a bundled effect from the dropdown, or browse to a custom .effect file.
  6. Adjust resolution and any shader-specific parameters until the visual matches your scene.

If your wider OBS audio configuration still needs tuning sample rate, monitoring devices, source routing the OBS audio settings guide for 2026 covers everything Audio Waves Visualizer assumes is already configured. For the broader OBS setup context, the complete OBS Studio setup guide is the right starting point.

Performance Characteristics

Because rendering is handled directly on the GPU using OBS's native graphics pipeline, performance is dramatically more efficient than browser-based visualizers. There are no DOM updates, no JavaScript execution overhead, and no external rendering layers the audio data goes from the analyzer to the GPU and out to your scene in a single frame.

Performance impact scales primarily with three factors:

  • Shader complexity math operations, loops, and texture sampling per pixel
  • Source resolution internal render size of the visualizer source
  • Number of simultaneous instances multiple visualizers in the same scene multiply the cost

In most streaming setups, even multiple instances remain lightweight when shaders are properly optimized. As a rough benchmark, running three Audio Waves Visualizer sources at 1920×1080 with the bundled Spectrum Bars effect typically uses a fraction of the GPU resources required by a single browser-source visualizer doing the same job.

Practical Use Cases for Streamers and Podcasters

The flexibility of the shader system enables a wide range of production scenarios:

  • Microphone activity indicators with subtle reactive motion that confirms the mic is live
  • Music visualizers for livestreams, DJ sessions, and listening parties
  • Dynamic Starting Soon and BRB screens that pulse with background music
  • Reactive overlays around webcams, avatars, or VTuber models
  • Multi-source podcast layouts with independent audio visualization per speaker
  • Twitch and YouTube music streams with custom branded spectrum displays
  • ASMR and audio-focused content where viewers benefit from a visual confirmation of subtle sound
  • Live concert and DJ broadcasts using high-detail FFT-driven visuals

Since the plugin integrates directly with OBS audio sources, it naturally respects filters such as compression, gain, and noise suppression, ensuring consistent behavior with your existing audio pipeline. For music-focused streamers, pairing Audio Waves Visualizer with a metadata widget like the Now Playing music companion for OBS creates a complete music-stream layout with both reactive visuals and track information on screen.

Audio Waves Visualizer vs Browser-Source Music Visualizers

The most direct comparison new users make is between this plugin and traditional browser-based visualizer pages. The trade-offs break down clearly: browser visualizers are easy to share via URL but introduce CPU overhead, variable latency, and limited audio access they typically only listen to a generic system audio capture, not to specific OBS sources. Audio Waves Visualizer trades the cloud-page convenience for native OBS integration, GPU-accelerated rendering, per-source audio targeting, and complete shader-level customization. For any creator serious about audio-driven content, the native plugin is the clear long-term answer.

Combining Audio Waves Visualizer With Other Audio Tools

Audio Waves Visualizer pairs naturally with the rest of the OBS audio toolkit. For multi-track recording where each audio source is preserved as a separate WAV file for post-production, the audio stems recorder for OBS Studio is the perfect companion visualize live, then keep clean stems for the edit. For shader-driven background effects that aren't audio-reactive but share the same GPU pipeline philosophy, the multi-color arcane frame shader and the magical color mist shader filter layer beautifully behind a reactive visualizer.

Common Issues and How to Fix Them

  • "The visualizer doesn't react to my audio." Confirm the source dropdown points to the correct OBS audio source not a system audio capture you may have disabled.
  • "My custom shader won't load." Make sure the file defines a valid Draw, Solid, or Default technique. Compilation errors are logged in the OBS log file.
  • "GPU usage is too high." Lower the source resolution or simplify the shader. FFT-heavy effects with many bands cost more than amplitude-only visualizations.
  • "The visualization stutters." Match the source FPS to your OBS canvas FPS, and verify that OBS is using GPU rendering (not software).
  • "My audio filters aren't reflected in the visualizer." Check that the visualizer is listening to the filtered source, not the raw input device OBS treats them as separate audio paths.

Why This Approach Matters

Audio Waves Visualizer is not just a visualizer it's a shader-driven rendering layer for OBS.

By separating audio analysis from rendering logic, the plugin enables a level of control typically reserved for custom graphics engines. This makes it suitable not only for content creators, but also for developers and advanced producers who want to design fully custom, audio-reactive visual systems inside OBS Studio without building external tooling.

The result is a clean, extensible, and high-performance solution for integrating real-time audio visuals into any broadcast workflow whether that's a one-person podcast, a multi-camera music livestream, or a full esports broadcast where every detail matters.

Frequently Asked Questions About Audio Waves Visualizer

Is Audio Waves Visualizer free?

Yes. The plugin is free to download and use, including all bundled effects and full custom shader support. No account, license key, or subscription is required.

What audio sources can it visualize?

Any OBS audio source microphones, desktop audio captures, media sources playing music, application audio captures, and virtual audio cables. Each visualizer instance can listen to a different source, so multi-speaker podcasts can have independent visualizers per host.

Do I need to know shader programming to use it?

No. The bundled effects cover the most common streaming needs out of the box. Shader programming is only required if you want to build completely custom visuals, in which case any HLSL knowledge transfers directly.

Does Audio Waves Visualizer work with Streamlabs Desktop?

Streamlabs Desktop is built on OBS Studio, so plugin compatibility depends on the specific Streamlabs build. The visualizer is officially designed and tested against standard OBS Studio.

Can I use it for music streams on Twitch and YouTube?

Yes music streams are one of the strongest use cases. The 64-band FFT spectrum makes it possible to build detailed, broadcast-quality reactive visuals that scale cleanly with high-bitrate music streams.

Will the visualizer affect my stream's encoding performance?

Because rendering is GPU-based and the visualizer outputs to a transparent layer just like any other source, its encoding cost is identical to any other GPU-rendered overlay. The CPU savings versus browser-source visualizers typically improve overall streaming stability.

Can I run multiple visualizers in the same scene?

Yes, and this is one of the plugin's most useful features. Each instance is independent, which means you can have one reactive ring around your webcam, a spectrum bar at the bottom of the screen, and a subtle pulse on a background frame all driven by different audio sources or different shader parameters.
